Standard roller end configurations
January 31, 2020 by Nate Laverdure

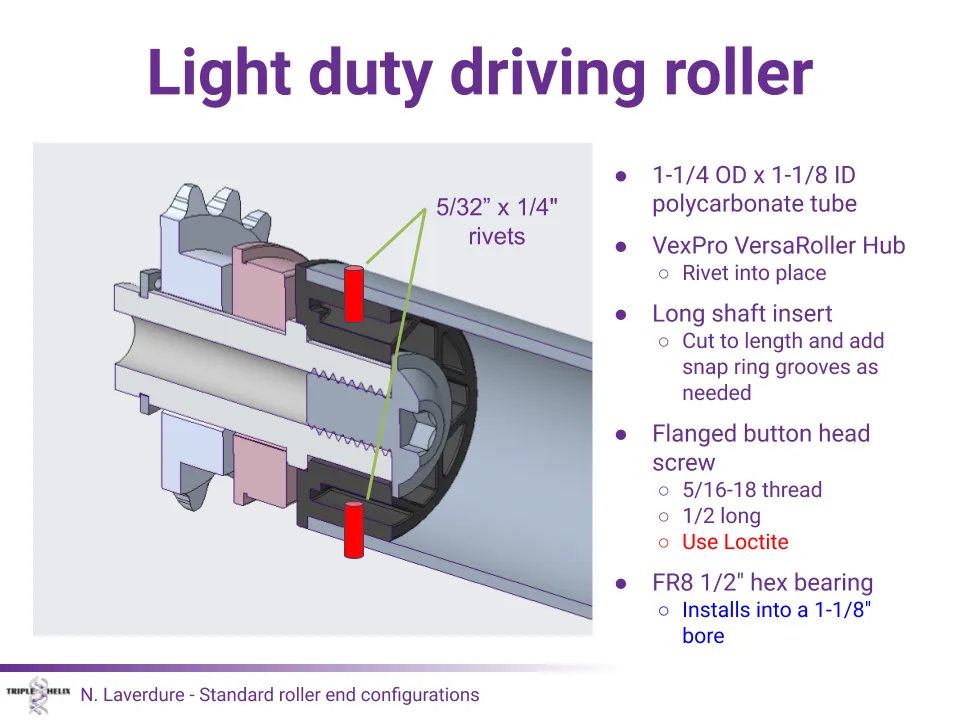

The game piece handling mechanisms within Triple Helix’s 2020 competition robot employ rollers of various shapes and sizes. This brief slide deck outlines the team’s 4 standard configurations for the ends of these rollers. We classify idle rollers, driven rollers, and two types of driving rollers.
